Prayosha Hydraulic Surface Grinding Machine For Sale In Ahmedabad Gujarat

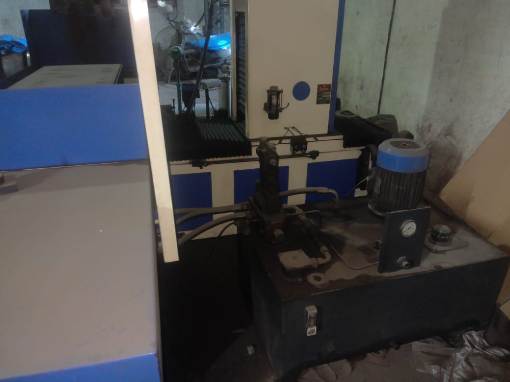

Prayosha Hydraulic Surface Grinding Machine

prayosha-surface-grinder- used-surface-grinding-machine-

For sale Prayosha make hydraulic surface grinder machine with all standard accessories. Model: PH- 2048 - Jumbo. Year - 2015. Price - Rs. 11 Lacs.

Max. Table Size : 600 x 1200 mm, Max. Longitudinal Travel : 1350 mm, Max. Cross Transverse : 5550 mm, Max. Spindle Center height above table : 600 mm, Max. Table Speeds : 25 mtr/min, Power Cross Transverse : 1000 mm/min, Auto cross feed at each table reversal (Infinitely variable) : 0.5 to 10 mm, Least count of vertical feed head wheel : 0.002 mm, Size of grinding wheel : 350 x 50 x 127 mm, Power of spindle motor : 7.5 HP, Speed of grinding spindle : 1400 rpm, Working Pressure : 20 kg/cm², Hydraulic Motor : 5 HP, Hydraulic Tank Capacity : 200 Liters, Max. Table load : 1000 Kg


Ahmedabad - Gujarat - India




Posted By :- Owner

Make :- Prayosha ( Indian )

Ads :- Machinery Sale

Type :- Machine

Condition :- Used [ Working ]

Location :- India

Ads No :- 169427

Category :- Machine Tools

Subcate :- Surface Grinder
